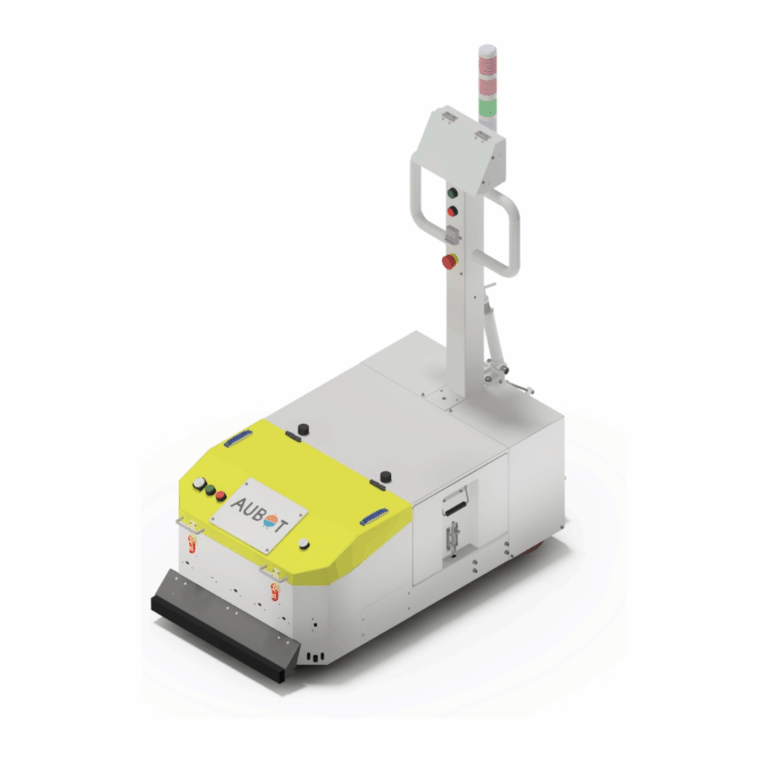

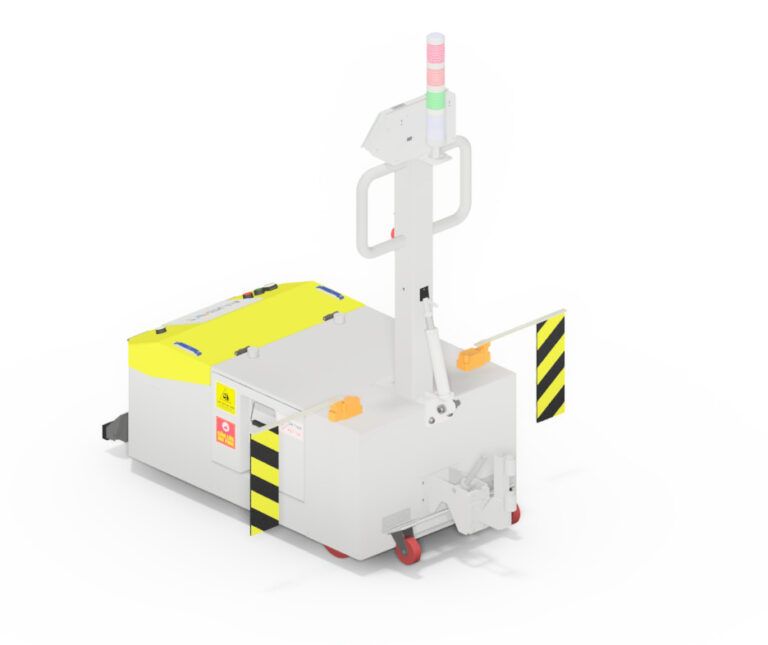

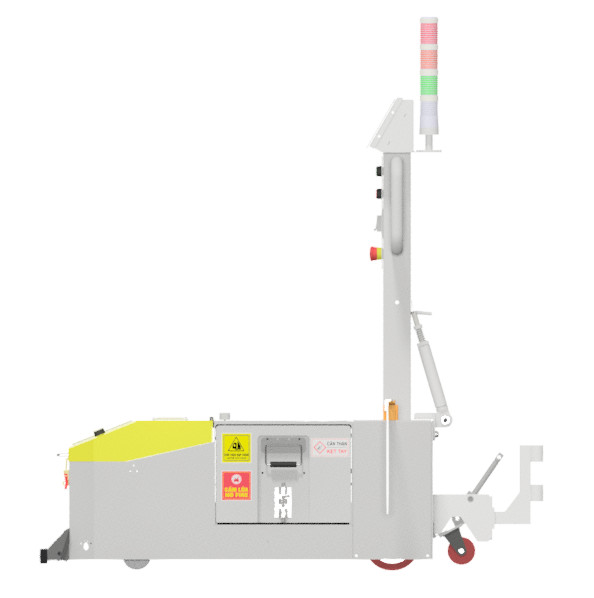

With an optimum design, compact size, towing capacity of 500kg, T500 can operate in tight space, 24/7. The intelligent control system can be customized according to customer’s requirements. Apart from that T500 also has an outstanding mechanism for users and equipment.

Applications:

  • Long-distance material transport between receiving, storage, and shipping zones.
  • Batch movement of multiple carts for efficient high-volume goods handling.
  • Replenishment of picking and packing areas to support continuous operations.
  • Cross-docking and staging workflows, moving goods quickly between inbound and outbound.
  • Replacement of manual tuggers or forklifts in repetitive, low-value transport tasks.

Main Functions

  • Advanced control system: Developed by Aubot, using 32-bit microprocessor, flexible modular design, using CAN communication network.
  • Navigation: Magnetic strips. Magnetic strips can be changed, easily expanded with low costs, it can be applied flexibly within existing factory layout
  • Traffic organizing system between AGVs: Wireless communication between AGVs help avoid conflict and determine AGV’s order of movement.
  • Integrated RFID tag reader to organize the operation of all AGVs in the system.
  • Maximum capacity of 500kg.
  • Customizable moving speed up to 460mm/s.
  • Activity logs are stored in the SD memory card.
  • Communication with control computer or tablet via RS485 interface.
  • AGV’s T500 full battery can help the vehicle to continuously operate up to 8 hours.

Safety Mechanism

  • Multi-area laser sensors with customizable scanning distance.
  • Physical sensors help the AGV to stop when having contact with obstacles.
  • Warning system with light and sound signals.
  • Emergency stop button.

Option and Accesories

  • Balancer for battery system
  • Battery charger
  • Battery troller
  • Monitor and computer
  • Integrated software for buyer’s system
  • Lifting mechanism for manual moving wheels
